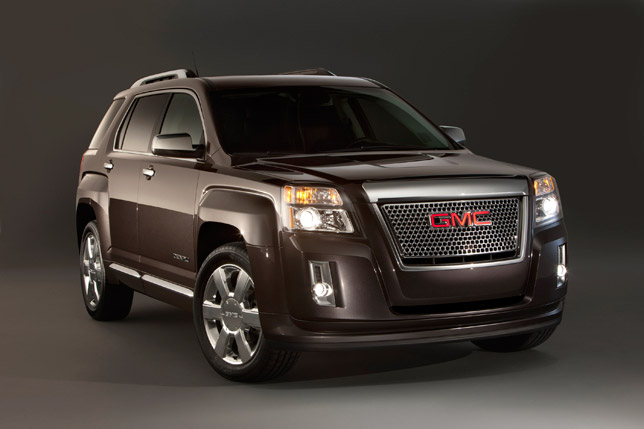

2013 GMC Terrain Denali 3.6L V-6
GMC is currently expanding the Denali sub-brand through the debut of the all-new 2013 GMC Terrain Denali, which undoubtedly will bring even more style and power to the luxury small SUV range. The reason for this is that the with the introduction of the Terrain Denali, GMC also announced the simultaneous introduction of the new 3.6-liter V-6 engine with direct injection and continuously variable valve timing, which will replace the current 3.0-liter V-6 engine in Terrain lineup. In details, the engine delivers the exciting 301 horsepower (224 kW) at 272 lb.-ft. (369 Nm) of torque. And although it makes more power and torque, it is expected to deliver fuel economy equal to its predecessor. How is that possible? Well, the answer lies in the use of new lightweight components in the V-6 engine, which in contribute to the fuel efficiency. In addition, an integrated cylinder head/exhaust manifold design saves about 13 pounds compared to a non-integrated design. Next, a composite intake manifold saves about 5.5 pounds vs. an aluminum intake. And eventually, there's the lightweight structural front cover and high-strength connecting rods, which save further from the weight of the SUV.
Terrain Denali will be offered with its standard Ecotec 2.4-liter I-4 with direct injection and continuously variable valve timing as well. It will also include front-wheel drive as a standard on Terrain Denali, with all-wheel drive available for both engines. However, what is exclusive to the Terrain Denali's suspension system are the new dual-flow dampers. In particular, this technology delivers a smoother ride and improved handling by means of control on the suspension dampening across a broader range of driving conditions.
2013 GMC Terrain Denali includes high-end details. The models with the 2.4L engine feature 18-inch wheels, while the V-6 engine model sides on 19-inch wheels. Further exterior features are: signature chrome grille, satin chrome accents, body color front and rear fascias, body color rocker panels with satin chrome molding, new headlamp and taillamp designs, dual chrome finish exhaust outlets (single outlet on 2.4L). How about the interior - Terrain Denali's includes the soft-touch of Jet Black leather, which lines the seats and door inserts. In addition, a contrast stitching and red accent lighting contribute to an inviting interior. Additionally to the interior are exclusively included: soft-touch instrument panel with French stitching, leather-wrapped steering wheel with smoked mahogany wood accents, embossed Denali logos on front seatbacks, smoked mahogany wood trim accents, Denali illuminated front sill plates, Eight-way power driver and passenger seat.
Of course, this SUV can't go without class-leading technology: Terrain Denali comes standard with color touch radio with IntelliLink. This is a new infotainment system that includes reconfigurable home screen, intuitive voice commands, Bluetooth smartphone integration, control of streaming internet radio, and iPod controls with Gracenote music database technology. Furthermore, a forward collision alert and lane departure warning are standard on Terrain Denali. What is special about them is that they use the industry's first single-camera crash-avoidance system to visually and audibly warn drivers when a collision is imminent or the vehicle crosses a lane marker. Additionally, Terrain Denali also comes with Automatic Crash Response, Turn-by-Turn Navigation, roadside assistance, emergency services link, stolen vehicle assistance and remote door unlock.
2013 GMC TERRAIN DENALI SPECIFICATIONS
Models: | GMC Terrain Denali; FWD and AWD |
Body style / driveline: | 5-passenger, 4-door SUV , front-engine, front- or all-wheel drive |
Construction: | welded galvanized steel (except roof) monocoque |
EPA vehicle class: | compact sport utility vehicle |
Manufacturing location: | Ingersoll, Ontario, Canada |
Key competitors: | Ford Edge, Mazda CX-7, Nissan Murano, Hyundai Santa Fe |
Engines
Type: | 2.4L DOHC I-4 DI | 3.6L DOHC V-6 DI |
Displacement (cu in / cc): | 145 / 2384 | 217 / 3564 |
Bore & stroke (in / mm): | 3.46 x 3.86 / 88 x 98 | 3.70 x 3.37 / 94 x 85.6 |
Block material: | cast aluminum | cast aluminum |
Cylinder head material: | cast aluminum | cast aluminum |
Valvetrain: | DOHC, four valves per cylinder; continuously variable valve timing | DOHC, four valves per cylinder; continuously variable valve timing |
Fuel delivery: | direct sequential fuel injection with electronic throttle control | direct sequential fuel injection with electronic throttle control |
Compression ratio: | 11.2:1 | 11.5:1 |
Horsepower (hp / kW @ rpm): | 182 / 136 @ 6700* | 301 / 224 @ 6500* |
Torque (lb-ft / Nm @ rpm): | 172 / 233 @ 4900* | 272 / 369 @ 4800* |
Recommended fuel: | regular unleaded or E85 ethanol with federal emissions | regular unleaded or E85 ethanol with federal emissions |
Emissions controls: | close-coupled catalytic converters; Quick-Sync 58x ignition system; returnless fuel rail; fast-response O2 sensor | close-coupled catalytic converters; Quick-Sync 58x ignition system; returnless fuel rail; fast-response O2 sensor |
EPA-estimated fuel economy (city / hwy): | 22 / 32 (FWD) 20 / 29 (AWD) | 17/ 24 (FWD, est.)
16 / 23 (AWD, est.) |
Transmission
Type: | Hydra-matic 6T45 six-speed automatic electronically controlled with electronic range select | Hydra-matic 6T70 six-speed automatic electronically controlled with electronic range select |
Gear ratios: (:1): | ||
First: | 4.58 | 4.48 |
Second: | 2.96 | 2.87 |
Third: | 1.91 | 1.84 |
Fourth: | 1.44 | 1.41 |
Fifth: | 1.00 | 1.00 |
Sixth: | 0.74 | 0.74 |
Reverse: | 2.94 | 2.88 |
Final drive ratio: | 3.23 (FWD) 3.53 (AWD) | 2.77 (FWD)
3.39 (AWD) |
Chassis/Suspension
Front: | independent strut-type with tuned coil springs; direct-acting stabilizer bar; hydraulic ride bushings; DFD (Dual Flow Dampeners |
Rear: | independent four-link with coil springs and trailing arm; stabilizer bar; hydraulic link bushings |
Steering type: | rack-mounted electric power steering with 2.4L; hydraulic power rack-and-pinion with 3.6L |
Steering ratio: | 17.4:1 (2.4L) 17.5:1 (3.6L) |
Steering wheel turns, lock-to-lock: | 2.90 (2.4L with 18-inch wheels) 2.80 (3.6L with 19-inch wheels) |
Turning circle, curb-to-curb (ft / m): | 40.0 / 12.2 (with 18-inch wheels) 42.6 / 13 (with 19-inch wheels) |
Brakes
Type: | power front and rear vented discs, standard anti-lock brakes |
Rotor diameter x thickness (in / mm): | front: 12.6 x 1.18 / 321 x 30 rear: 11.9 x 0.78 / 303 x 20 |
Total swept area (sq in/mc^2): | front: 68.4/441 rear: 50.5/326 |
Wheels/Tires
Wheel size and type: | 18-inch chrome-clad aluminum (std. with 2.4L) 19-inch chrome-clad aluminum (std. with 3.6L) |
Tires: | P235/55R18 all-season steel-belted radial blackwall tires P235/55R19 all-season steel-belted radial blackwall tires |
Dimensions Exterior
Wheelbase (in / mm): | 112.5 / 2857 |
Overall length (in / mm): | 187.8 / 4771 |
Overall width (in / mm): | 72.8 / 1850 |
Overall height (in / mm): | 66.3 / 1684 |
Track (in / mm): | front: 62.9 / 1598 rear: 62.1 / 1578 |
Approach angle (deg): | 15.2 |
Departure angle (deg): | 23.5 |
Breakover ramp angle (deg): | 16.7 |
Minimum ground clearance (in / mm): | 6.9 / 174 |
Ground to rear load floor (in / mm): | 28.8 / 731.2 |
Curb weight, base (lb / kg): | 3893 / 1766 |
Weight distribution (front / rear): | 56 / 44 |
Dimensions Interior
Seating capacity: | 5 |
Headroom (in / mm): | front: 39.8 / 1012 rear: 39.2 / 995 |
Legroom (in / mm): | front: 41.2 / 1046 rear: 37.2 / 946 |
Shoulder room (in / mm): | front: 55.7 / 1416 rear: 55.3 / 1404 |
Hip room (in / mm): | front: 54.6 / 1387 rear: 51.3 / 1304 |
Capacities
EPA interior volume (cu ft / L): | 127.2 / 3602 |
Passenger volume (cu ft / L): | 99.6 / 2820 |
Cargo volume (cu ft / L): Maximum behind rear seat: Maximum behind front seat: | 31.1 / 881 63.9 / 1810 |
GVWR, standard (lb / kg): | FWD 2.4L: 4960 / 2250 AWD 2.4L: 5070 / 2300 FWD 3.6L: 5203 / 2360 |
AWD 3.6L: 5291 / 2400 | |
Payload, base (lb / kg): | 1146 / 520 |
Trailer towing maximum (lb / kg): | 1500 / 680 (2.4L) 3500 / 1588 (3.6L) |
Fuel tank (gal / L): | 18.8 / 71.1 (2.4L) 20.9 / 79.1 (3.6L) |
Engine oil (qt / L): | 5 / 4.7 (2.4L) 6 / 5.7 (3.6L) |
Cooling system (qt / L): | 8.2 / 7.8 (2.4L) 10.8 / 10.2 (3.6L) |
Source: GMC
